API 682 – Plan 53B

Reliable barrier pressure. Zero product leakage.

Plan 53B uses a gas-loaded bladder accumulator to maintain the barrier liquid above process pressure. This reverses the direction of leakage, keeps the process fully contained and provides the mechanical seal with clean, pressurised barrier fluid. Flopac Plan 53B systems are designed and built in-house for arrangement 3 wet dual seals.

Interactive 3D model

Explore the Plan 53B in 3D

Rotate, zoom and take a closer look at the main components of the system.

Flopac Plan 53B seal support system
Loading 3D model…
Drag to rotateScroll to zoomClick the hotspots

Zero emissions

Full product containment.

Reliable barrier pressure

Stable pressure through gas compression.

No permanent nitrogen connection

The pre-charged accumulator does not require a continuous nitrogen supply.

Broad application range

Suitable for many Arrangement 3 wet dual seal applications, subject to fluid compatibility and operating conditions.

Main advantages

  • Barrier pressure above seal chamber pressure supports process containment during normal operation.
  • Clean barrier fluid lubricates and cools the seal faces.
  • The bladder separates nitrogen from the barrier fluid.
  • No continuous external nitrogen connection is required during normal operation.
  • Compared with Plan 53A, fewer external gas-control components may be needed, depending on the design.
  • Can be configured for a broad range of barrier pressures and operating requirements.

Main disadvantages

  • Higher differential pressure across the seal faces can increase frictional heat compared with some unpressurised arrangements.
  • Not suitable where the process cannot tolerate any barrier-fluid ingress.

When to use Plan 53B

At Flopac, we are strong believers in Plan 53B systems because of their reliable operation when correctly designed and maintained. For many dual seal applications, Plan 53B is a strong choice when process containment, stable barrier pressure and limited dependence on external utilities matter.

It is not automatically the right solution for every application: barrier-fluid compatibility, allowable process contamination, differential pressure and heat generation must all be considered.

Plan 53B – Solutions

A practical Flopac standard configuration for applications where the required specifications allow a simpler design.

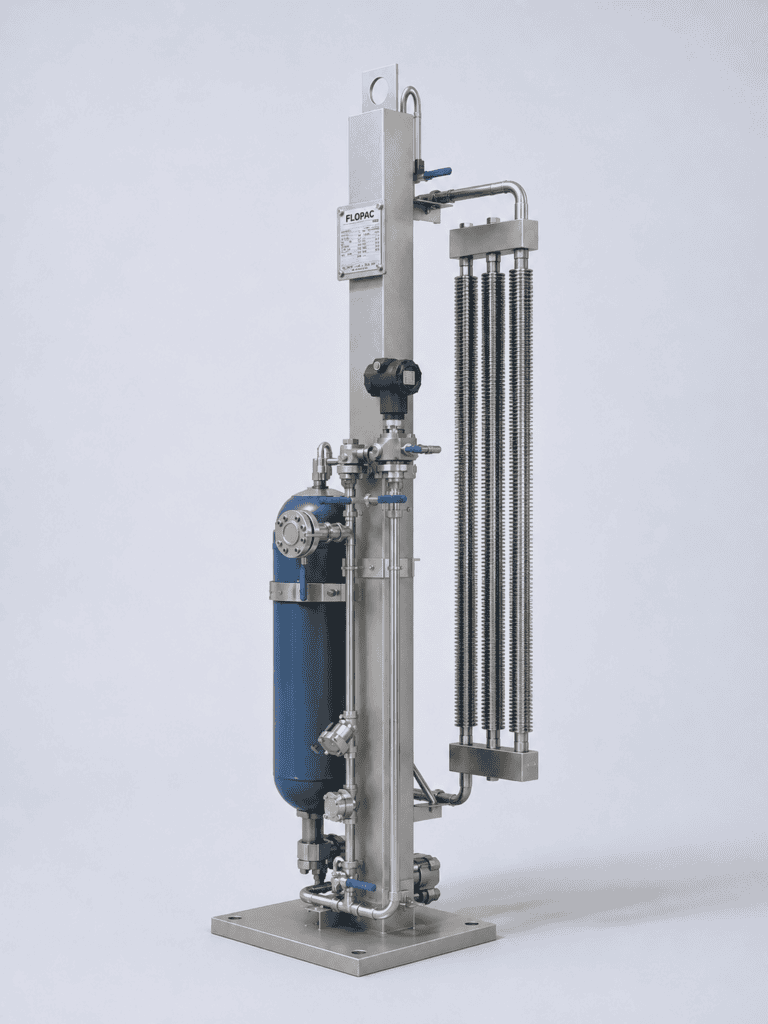

Flopac standard Plan 53B system with piped connections, configured to meet the applicable project requirements.

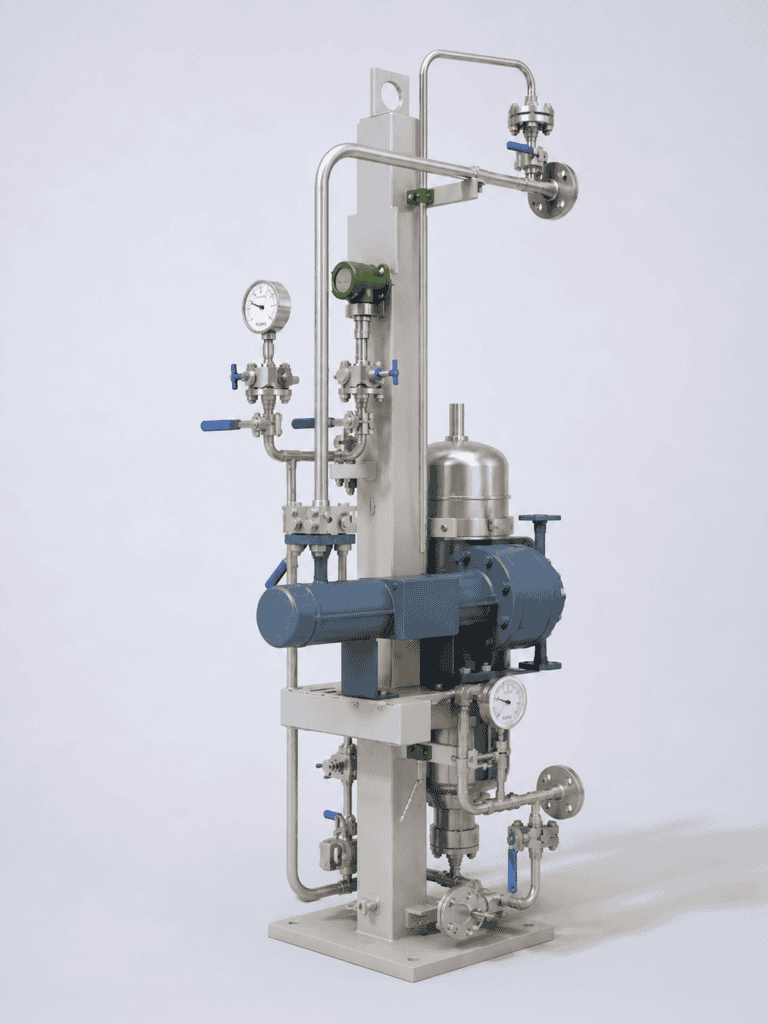

Flopac standard Plan 53B system with butt-welded piping, configured to meet the applicable project requirements.
